Product Description

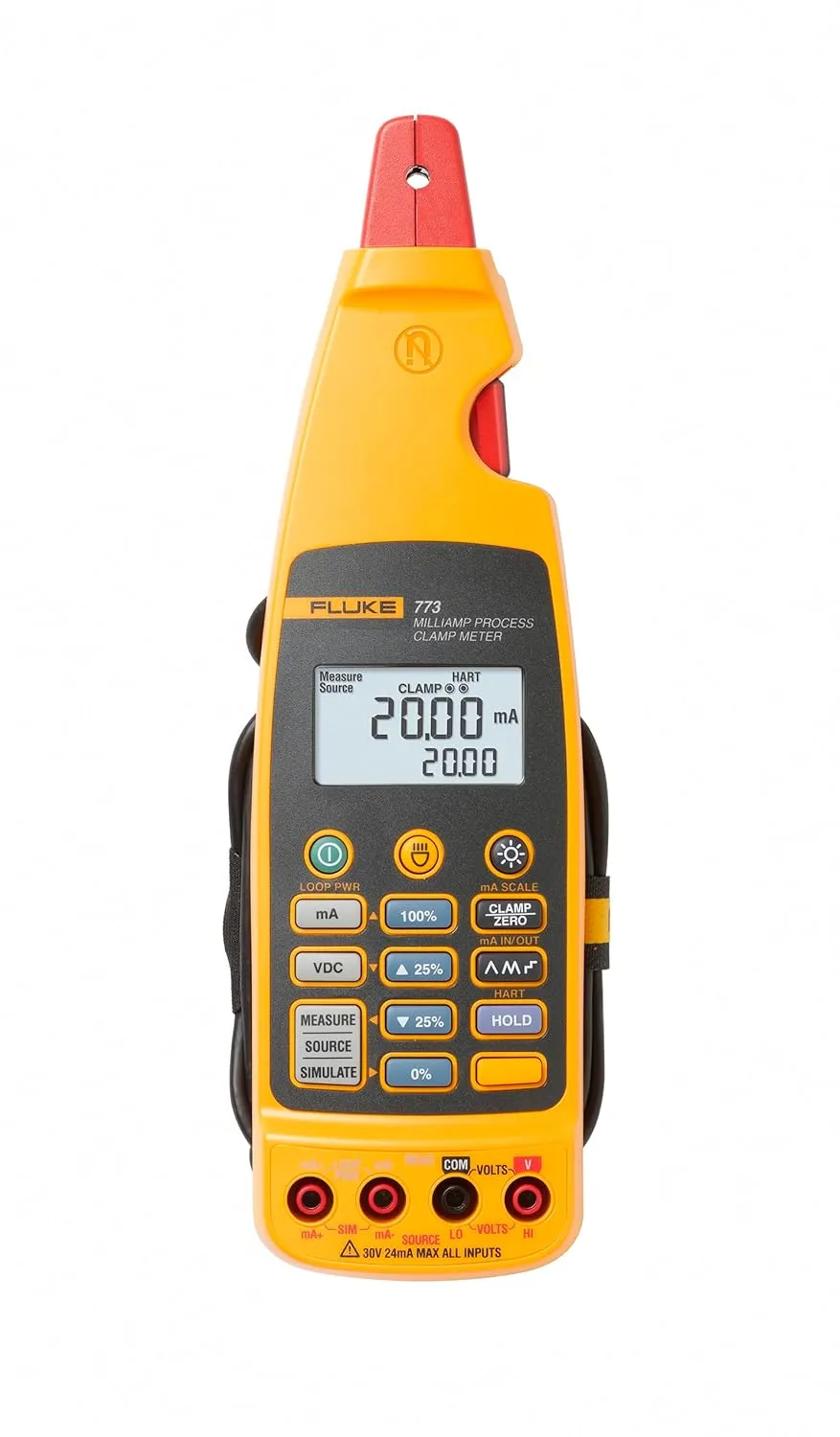

The Fluke milliamp process Digital clamp-meter is a manual-ranging meter for measuring DC milliampere (MA) and DC Voltage output signals of 24V loop circuits. It has a clamp that measures DC to 100MA. The clamp has two jaws that can close around an electrical conductor up to 4.5mm (0.177 inches) in diameter to measure current without touching or Interrupting the circuit, and has a 1 M extension cable so it can detach from the meter Body for hard-to-reach applications. A set of Test leads is included for measuring DC to 24MA and DC Voltage to 30V. The meter can source and simulate DC signals up to 20MA, can source DC Voltage signals up to 10V, and is accurate to 0.2 percent with a resolution of 0.01MA. It has an LCD that shows both milliamp readings and percent of 4 to 20MA span, and a backlight for visibility in low light that turns off automatically after two minutes. An LED at the top of the meter Body can be illuminated to aid visibility of wires in Dark enclosures. The meter features a built-in 24V loop power supply for powering a transmitter and measuring its milliampere output signal, and a scaled milliampere output for connecting to a logging device (sold separately) to record measurements. To aid documentation of readings and capture readings in tight spaces, the data hold function keeps the most recent reading on the display after disconnecting from the circuit. The unit operates on four 1.5V AA batteries, and turns off automatically after 15 minutes of non-use to conserve battery life. It has a low-battery indicator that signals when the battery needs to be replaced. The meter is manual-ranging, so the user selects the operating range for the property being measured. It meets IEC (international electro technical commission) Safety standards 61010-1 and 61010-2-032, has CE (European Conformity) marking, and complies with CSA (Canadian standards Association), and Australia N10140. The unit comes with a Soft carrying case.
From the Manufacturer
Fluke Corporation is the world leader in the manufacture, distribution and service of electronic test tools and software. Since its founding in 1948, Fluke has helped define and grow a unique technology market, providing testing and troubleshooting capabilities that have grown to mission critical status in manufacturing and service industries. From industrial electronic installation, maintenance and service, to precision measurement and quality control, Fluke tools help keep business and industry around the globe up and running. Flukes 773 Milliamp process clamp meters are designed to save you time and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system. It measure mA signals for PLC and control system analog I/O without breaking the loop. It measure output signals from transmitters without breaking the loop. Plus there is a detachable clamp with an extension cable. It will simulate and measure the mA signals in the circuit and the source and measures are VDC. Plus the in and out are 4 to 20 mA.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 12.52 x 14.9 x 2.95 inches; 14.46 ounces
- National Stock Number : 6625-01-631-6675, 6625-01-409-1017
- Batteries : 4 AA batteries required. (included)
- Date First Available : July 9, 2009
- Manufacturer : Fluke Corporation
- Country of Origin : China
